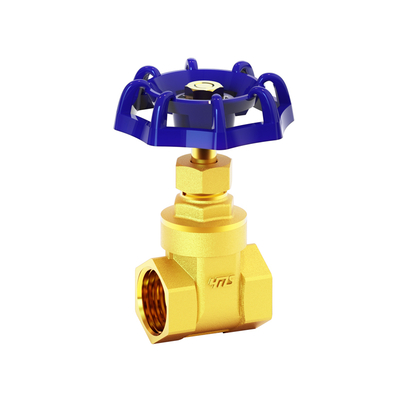

1112 Brass Gate Valve
Material:
Main valve body: Brass CW617N
0 Ring: NBR
Handwheel: Cast lron HT200
Handwheel Bolt: SS304
Nameplate: Aluminum A03600
Technical specification:
Normal pressure:PN≤1.6MPa
Working medium:Water, Non-corrosive
Working temperature:-20°C≤T≤110°C
Pipe thread: BSPP/BSPT/RC/NPT
