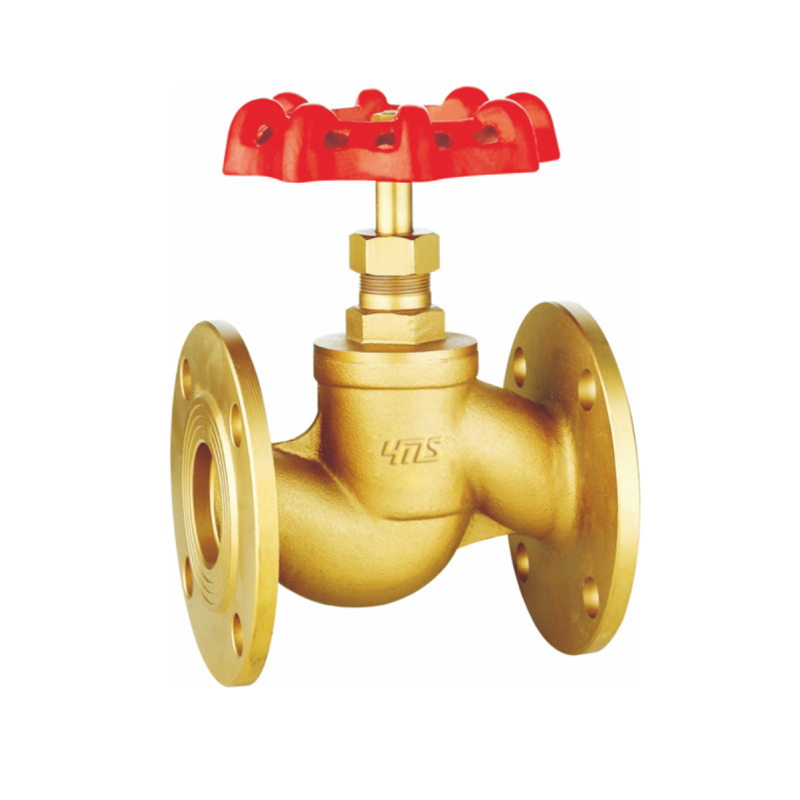

1299 Brass Flange Globe Valve

Material：
Main valve body: Brass CW617N
0 Ring: NBR
Handwheel: Cast lron HT200
Handwheel Bolt: SS304
Nameplate: Aluminum A03600

Technical specification：
Normal pressure: PN≤1.6MPa
Working medium: Water, Non-corrosive
Working temperature: -20°C≤T≤110°C
Pipe thread: BSPP/BSPT/RC/NPT
