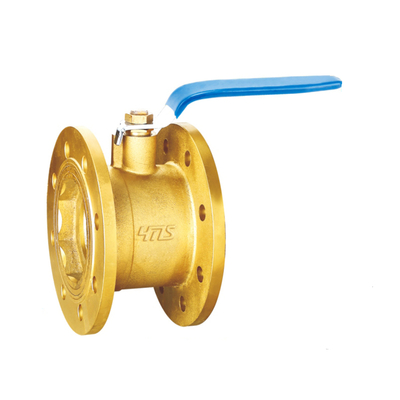

1396 Brass Flange Ball Valve

Material：
Main valve body: Brass CW617N
Ball: Chrome Brass
0 Ring: NBR
Steam: Brass
Handwheel: Steel Q235
Handwheel Bolt: SS304

Technical specification：
Normal pressure: PN≤1.6MPa
Working medium: Water, Non-corrosive
Working temperature: -20°C≤T≤110°C
Pipe thread: BSPP/BSPT/RC/NPT
